Facets

• Facets are a way of splitting a plot into multiple panels based on the values of a variable.

• grid and wrapped

• when to use this vs aesthetics?

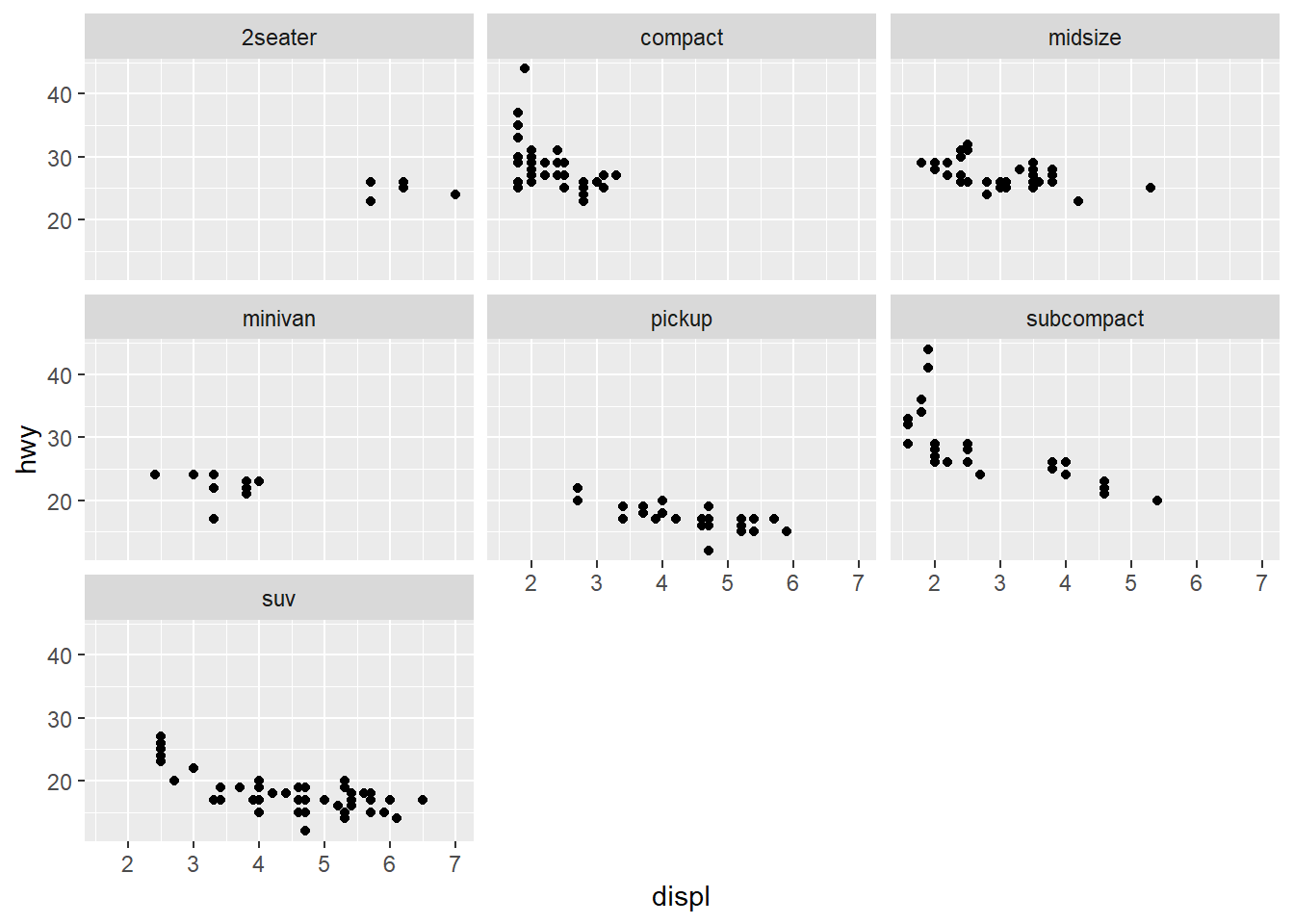

ggplot(mpg, aes(displ, hwy)) +
  geom_point() +
  facet_wrap(~class)

Exercises

• divides in to bins

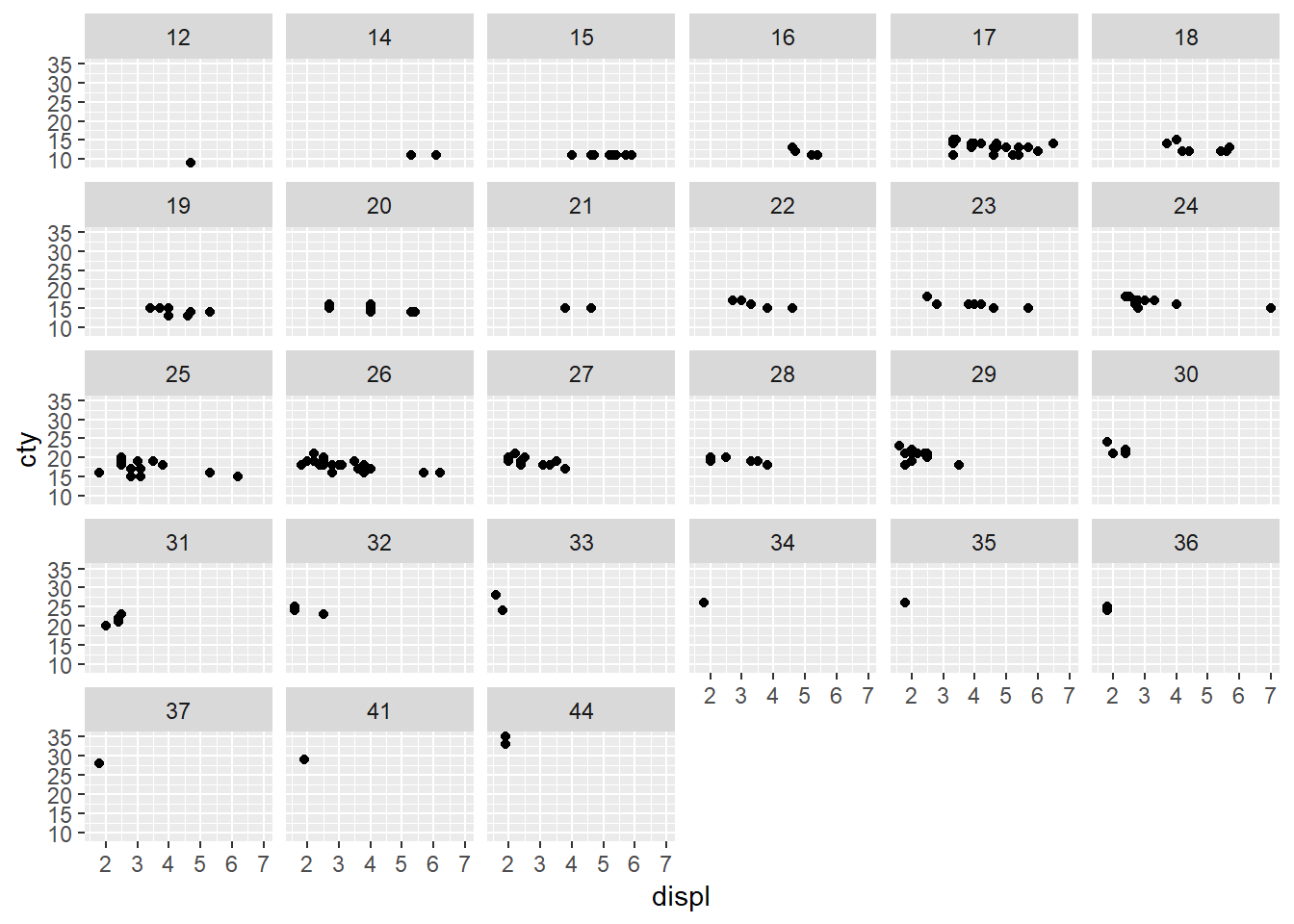

ggplot(mpg, aes(displ, cty)) +
  geom_point() +
  facet_wrap(~ hwy)

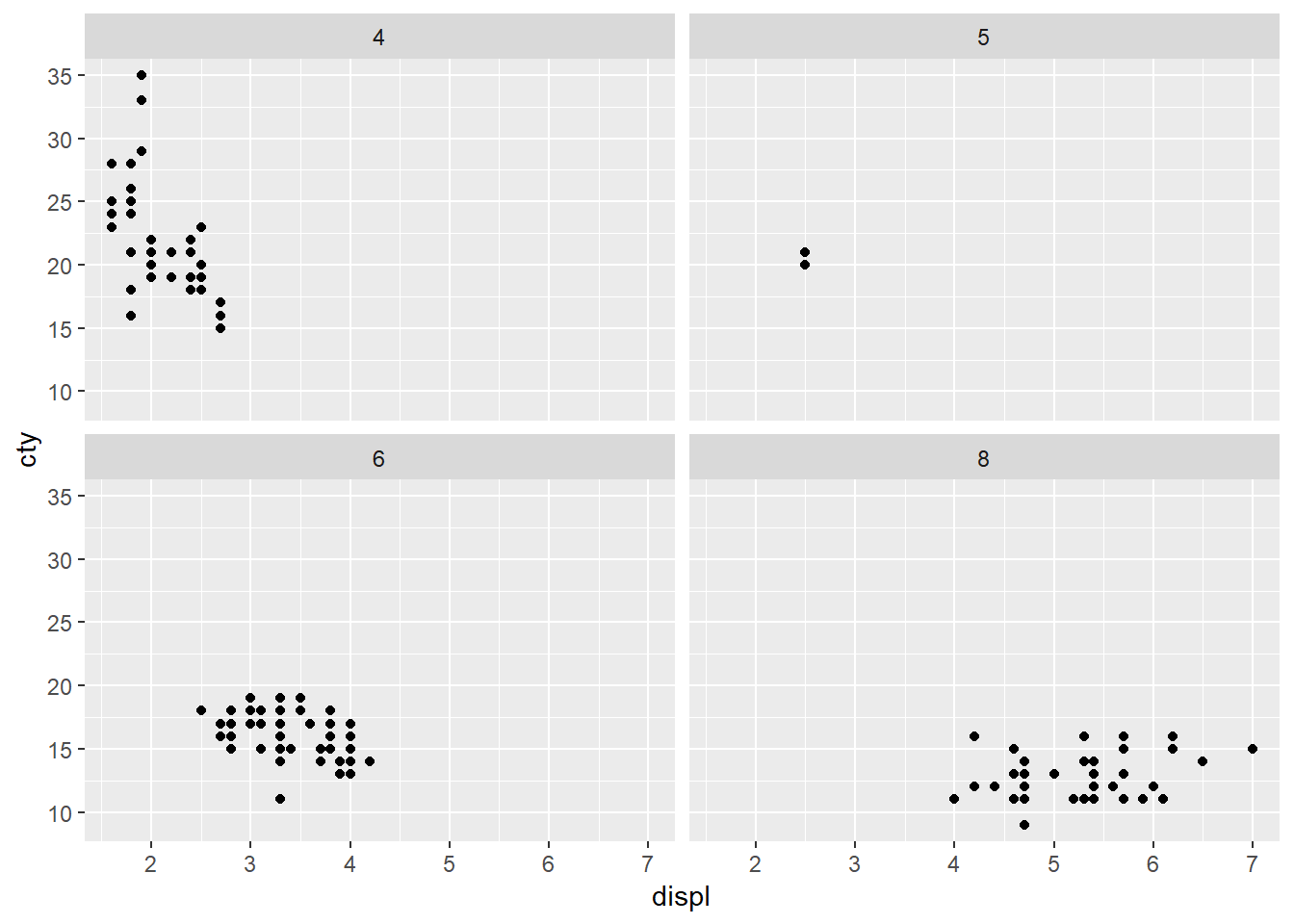

ggplot(mpg, aes(displ, cty)) +
  geom_point() +
  facet_wrap(~ cyl)

ggplot(mpg, aes(displ, cty)) +
  geom_point() +
  facet_wrap(~ cyl)

• no. cyclinders increase -> bigger engines, more fuel consumption

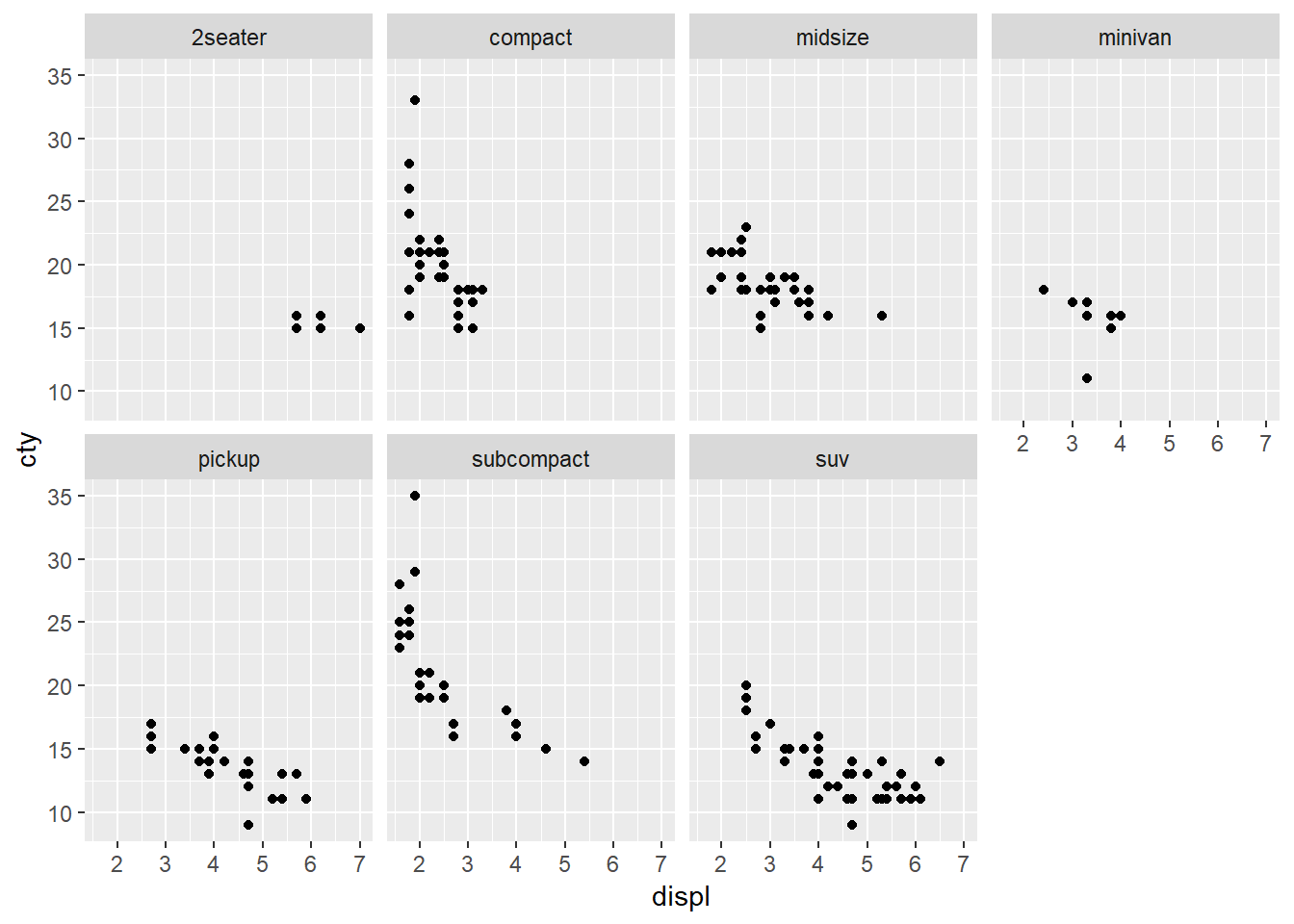

ggplot(mpg, aes(displ, cty)) +
  geom_point() +
  facet_wrap(~ class, nrow = 2, ncol = 4)

ggplot(mpg, aes(displ, cty)) +
  geom_point() +
  facet_wrap(~ class, nrow = 2)

• The scales argument controls whether the axes in the facets are fixed or allowed to vary independently.

• Options:

• fixed (default): All facets share the same x and y-axis scales.

• free_x: Each facet has its own x-axis scale.

• free_y: Each facet has its own y-axis scale.

• free: Each facet has its own x and y-axis scales.

• use when scale are different/the same

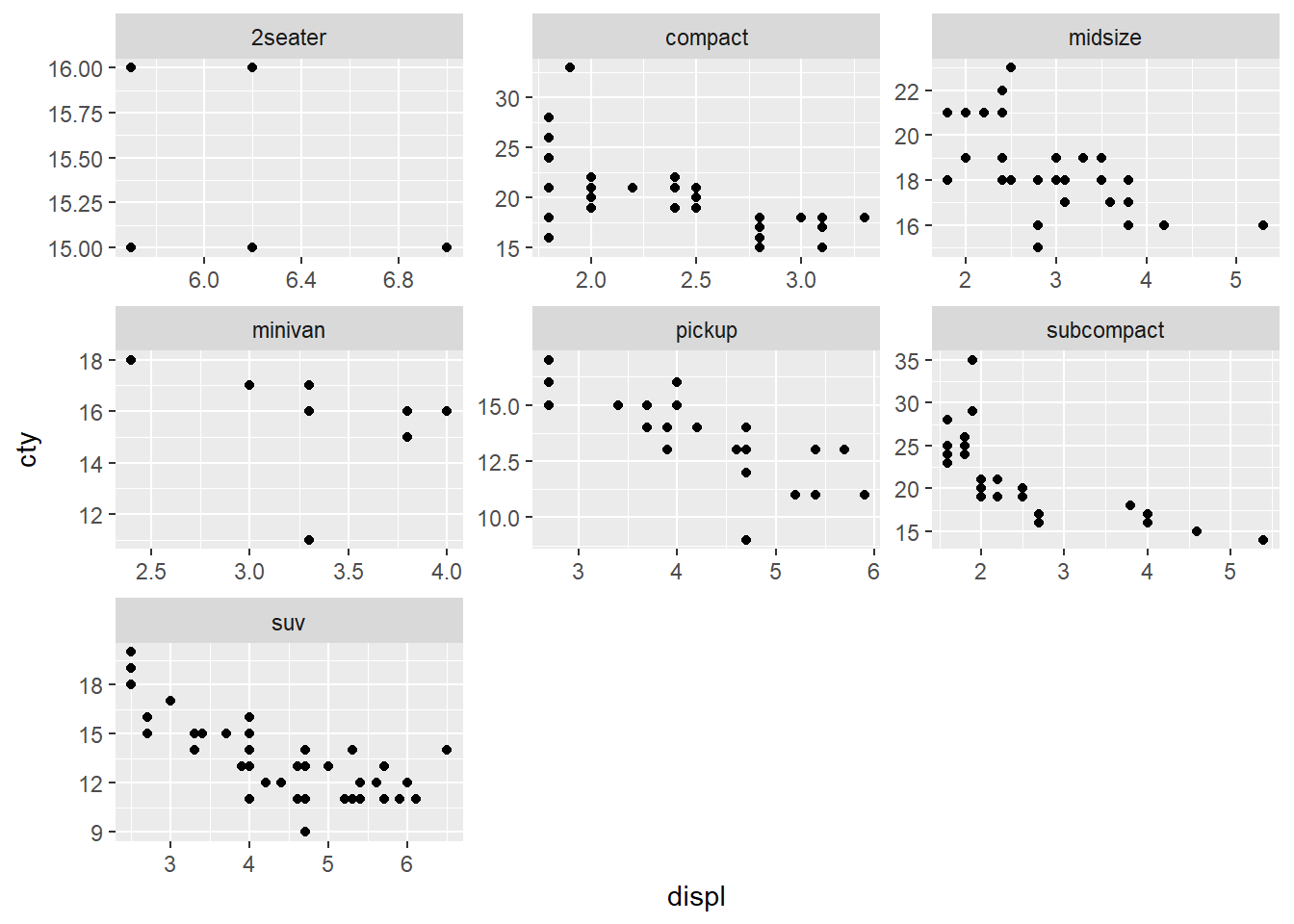

ggplot(mpg, aes(displ, cty)) +
  geom_point() +
  facet_wrap(~ class, scales = "free")
